Recently I found an interesting question on FlashFocus.nl, about creating light and shadows in a 2D environment. I started experimenting with this to see how far I could take it. I love to share the results and some insides about this fun project.
How to get started
The initial code that the topic starter used a loop through all objects, and used hitTestPoint-function to detect if the light hits a wall. Therefore he used a loop with 360 steps, used for all directions. In the innerloop it tries if it hits the wall, otherwise goes away from the light (using the direction of the outerloop), tries if it hits the wall. That loop goes on till it does hit a wall. It is a bit of trial and error, but I think it is very clever. At the end of each loop a lineTo is used to draw the light, so in the end it will be a shape with 360 vector points.
Speed of light
Now, that screams for optimization and speed. It’s a fun project to mix some things you have seen and want to try out for a long time. The first thing that I tried to make it faster, draw all objects into an BitmapData, and use the getPixel function instead of hitTestPoint, which is notable faster if you don’t move objects. I used that BitmapData object only too check if the light hits the objects; no one actually sees it. To use hitTestPoint, you must loop through all objects and detect if they hit. With a lot of objects, it would be slower. With BitmapData, you don’t need that loop, and you are free to use unlimited objects with even custom shapes. Less looping == faster, unlimited objects == awesome
More realism
I also wanted to make it look more realistic. Having light only is not close enough to realism. It needs shadows. I created an inverted shape of the light-shape and filled it with black (a). This creates a nice shadow, however has very hard bounds, which is ugly. So then I took the shape again and drawed with a nice transparent to black gradient (b). Those 2 layers have the BlendMode ALPHA. The holder of those has a solid shape fill (as big as the stage) with BlendMode LAYER. This creates a nice ‘hole’ which I think works very well as shadow if you make it half-transparent. Oh, the colored light-layer (c) is a gradient too, with the same shape as b, only with BlendMode ADD.
Re-using shape data
Another optimization I used was to use graphics data API. In this case I have 1 shape which could be reused 3 times. So before even drawing, I collect all points and commands in an Vector. When I have all data collected, it draws the light-layer and shadow-layer at first, then it pushes some extra points to the Array to make the outer shadow-layer. So with 1 Array of (manipulated) data I could draw multiple shapes. That’s a good case of using the graphics data, I guess.
Optimized trig functions
I also used the TrigLUT-class (Trigonometry LookUp Table) from jacksondunstan.com, since the loop heavily uses Math.sin and Math.cos. I could use the valNormalizedPositive() function from that class in this case. It’s very fast and for me it was fun to use that class.
But it is still too slow..
The most intense about this thing isn’t the calculation, but the rendering itself. The whole ‘canvas’ needs to be updated and redrawed every frame with lots of layers and blendmodes, which is very intense for the CPU. I don’t know if this would be possible with Stage3D, but that would be the last step to render really fast. And when that is possible, I’ll guess I could move the object real-time too, which makes it very interesting for games.
I recently started working at MediaMonks where they are using this interesting pattern of coding; behaviors as a class. I started playing with ‘behaviors’ myself to see how this could work for me. If you use this pattern once, you’ll wonder why you did not use it ever before This post will lead you through some examples and shows some benefits of using it. This post is written with focus on actionscript 3 developers, who can read code and knows already something about object oriented programming. The goal is to learn more and become a better developer.
What is a behavior?
Well I guess everybody knows what it means, but in terms of code I would say that a behavior-class is some kind of a simple controller with a target. It does one thing, it controls the target with a specific feature/goal. The idea is to add functionality by assigning a behavior to an object (composition), instead of extending it to get the functionality (inheritance). That sound complicated, so why not check out what it practically means?
Difference between inheritance and composition
Let’s say you want to program an object that follows your mouse. How would you create it? I would create a class named MouseFollowingSprite which has all functions to do that. Then I would extend or create an instance of that MouseFollowingSprite-class and BANG I’m done
(You see that? It’s nicely done with some eased motion )
I have never seen a problem with extending, but I had troubles with finding a good way to add other kind of functions to this type of classes. In terms of OOP, is a rule to write classes with a single responsibility, and we already passed that one. But imaging you want your mouse following sprite also to scale when you scroll with your mouse wheel. Well that would be easy: Just create a class named ScrollWheelScalingSprite, which extends MouseFollowingSprite. Now it has both functionality, when you would create an instance of it.
Let’s create our ScrollWheelScalingSprite, it would like this:
Let’s go some deeper. What if you want a ScrollwheelScaleSprite which should not follow our mouse? That would be a problem, because it already has that functionality. However you could hack around around by adding some protected booleans, to enable the actual functions of the class. Name them like _mouseFollowingEnabled. When your class extend some other classes, you’ll probably need a _scrollWheelScalingEnabled too. In the constructor of the new class you just turn on/off the booleans and your done. But then again, if you want to use this to Bitmap, you have a problem, you cannot extend a Sprite and a Bitmap at the same time.
I mean, this is how we code, right? All classes have one responsibility, but could this example been done better? While writing, this post reminds me in a way to this older post of Keith Peters; you should read it. It also has a interesting discussion.
Create behaviors
As already stated, a behavior class is a controller. It deals with an object (we call it target) to add the actual behavior. Now I don’t think extending is bad, but I think we should use it with care.
Let’s create an abstract behavior class, which can be extended. (This is not needed, but very helpful for accessing the target and prevent duplicate code)
I think this does not require lots of explanation. We have a class, it saves a target that is passed from the constructor. We can do lot’s of stuff inside a behavior from this point.
Now, let’s convert our MouseFollowingSprite to a MouseFollowingBehavior, which should extends the AbstractBehavior. Most drastic change is to convert ‘this‘, to ‘_target‘ and change the constructor to make it an actual behavior:
This is not magic, but it is very powerful. We can assign this behavior to a Sprite, but also to a Bitmap or Video etc. This would not that easy / possible with inheritance only. The class works standalone and we don’t need booleans to enable or disable the behavior.
Ok, let’s also create the scroll wheel scale behavior:
Now we can assign a behavior very easy: Example of applying the behaviors
var sprite:Sprite = new Sprite(); new MouseFollowBehavior(sprite); new ScrollwheelScaleBehavior(sprite);
You are now free to add the behaviors you’ll need, and leave the one you don’t need. It’s like creating little plugins. Fun eh? It’s nice to add parameters to the constructor, to make it less static. The other fun part is that if you build a behavior right, you could copy/paste it to another project or in you library, because it has no dependencies to classes you don’t want or need. Of course, this is not something new, you could have seen this in temple-lib but also the Hype-framework too, and maybe lots of other framework probably use this pattern in a way.
Now we know the difference: Inheritence:“I want a Sprite that follows my mouse” Behaviors:“I want something that makes a Sprite follow my mouse”
Killing the behaviors
The code examples in this post does not have any function to remove it, but if you want to remove a behavior, it would be wise to assign the behavior to a variable, and create a destruct() or destroy() function inside the behaviors to remove listeners and references to the target etc, and then set it to null.
// Anywhere in your code: var myBehavior:MouseFollowBehavior = new MouseFollowBehavior(myMc);
// Somewhere in your code where you want to remove the behavior: myBehavior.destroy(); // a public function which removes all listeners, references etc myBehavior = null;
Conclusion
Behaviors are a cool and give clean reusable classes and I think we should use it more. It’s probably not new for you and the inheritence-example is not very realistic, but I hope it’s refreshing to look at it again. If you want to learn more design patterns, I also recommend this site.
If you think back on how you have coded in the past, what would you change now you know this pattern? BTW I want to learn more too, so don’t hesitate to leave some nice feedback below.
Oh, maybe you haven’t heard, but something unexpected will happen if you hold CTRL and click on the facebook like-button (found that in a YouTube comment; very lame).
Finally I have created and finalized my Actionscript 3 Event Generator, which was buggy but now it is very nice As stated on twitter, if you are a flashdeveloper and use custom events in actionscript 3, you should use this tool because it helps you create custom event classes very fast.

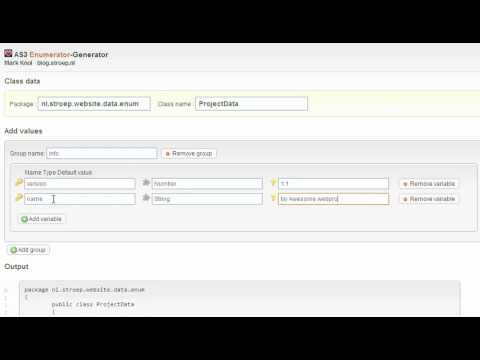

Features: - Fast variable adding - Event type generation (static constants). Just use lower camelCased variables and they will be formatted nicely. - Meta data for a event dispatcher class. - Automatic clone() function - Automatic toString() function
I created a tool to created ‘grouped’ value objects nicely and very fast. It is using private classes. I found it useful enough to share it with you, so maybe if you are in need of such a tool, you are free to use it.
I am working on a Pie-chart class. Data visualisation is fun, so I want to create my own pie-chart. Reinventing the wheel (creating another pie-chart) is a good thing if you want to create a custom wheel, so you know how to modify to make it fit your needs. Now this post is not about the pie-chart, but about something I discovered inside the graphics class. Most flashcoders knows you can draw lines using graphics.lineTo. There is another way of drawing lines in actionscript, using the graphics.drawPath and graphics.drawGraphicsData function. Let’s take a look at it.
graphics.lineTo
The good old method. Drawing a line from point (x:100, y:150) to point (x:300, y:300). Check out these four lines of clear code.
graphics.clear(); // start with blank canvas graphics.lineStyle(2, 0xFF9900); graphics.moveTo(100,150); graphics.lineTo(300,300);
graphics.drawPath
Now, you could also use this alternative way of drawing. There is no such thing as creating circles or squares using this method, only manual. It is using commands (moveTo, lineTo, curveTo) and has a separate list of data containing the actual values. All values in the data-list represents the x-positions (odd values) and y-positions (even values). So we are pushing x, y, x, y etc. When using CURVE_TO, you need to define four values; controlX, controlY, x, y. Take a look at the code:
var commands:Vector.<int> = new Vector.<int>(); vardata:Vector.<Number> = new Vector.<Number>(); commands.push(GraphicsPathCommand.MOVE_TO, GraphicsPathCommand.LINE_TO); // add 2 commands, moveTo and lineTo data.push(100, 150) data.push(300, 300); // push all values into data-list
graphics.clear(); // clear the canvas graphics.lineStyle(2, 0xFFCC00); // Set the stroke style graphics.drawPath(commands, data); // finally, draw it all
As you could see, you need to write a bit more code. As you can see you can combine the graphics.lineStyle and the graphics.drawPath functions, so its not completely new.
By the way, did you know you could push multiple items to an list at a time?
graphics.drawGraphicsData
Be prepared, 12 lines to draw the same a line.
var commands:Vector.<int> = new Vector.<int>(); vardata:Vector.<Number> = new Vector.<Number>(); var path:GraphicsPath = new GraphicsPath(commands, data); var drawing:Vector.<IGraphicsData> = new Vector.<IGraphicsData>();
var stroke:GraphicsStroke = new GraphicsStroke(2); stroke.fill = new GraphicsSolidFill(0xFF9900); // The stroke definition with a fill
commands.push(GraphicsPathCommand.MOVE_TO, GraphicsPathCommand.LINE_TO); // add 2 commands, moveTo and lineTo data.push(100, 150) data.push(300, 300); // push all values into data, odd represents the x-positions, even represents the y-positions. So we are pushing x, y, x, y etc. drawing.push(stroke, path); // collect all data inside one list
graphics.clear(); // clear the canvas graphics.drawGraphicsData(drawing); // finally, draw it all
The drawGraphicsData function forces you to push all data into a new list. The fun thing is, you feel very exited when you have the last example running. I don’t know why, but getting advanced stuff working feels good. Note, for the last example we need to import these classes to draw that orange line. Five classes for one simple orange line, pretty impressive eh?
When I first started to use this way of drawing lines, I noticed that I needed 2 lines of code to define a stroke. The fill is the last parameter of the GraphicsStroke class, and I really dislike to define all other optional parameters just to set that one parameter at the end. Oh, without a fill or color, a border is invisble Still don’t get it! The fill is a fun part of this advance drawing method. Now in the normal lineTo-world we know these linestyles graphics.lineBitmapStyle, graphics.lineGradientStyle, graphics.lineShaderStyle and ofcourse the graphics.lineStyle. Now if you want to create a border to be ‘filled’ with something, you could create a GraphicsSolidFill, GraphicsGradientFill, GraphicsBitmapFill or GraphicsShaderFill.
It is nice to know the same classes could be used to fill a shape, so they could be added to the drawing-list too. That is really a nice part of this advanced way of drawing, just add or remove instances of classes to the drawing-list (it should implement IGraphicsData).
You can now define fills, strokes and multiple paths before you actually draw it on the stage.
Saving graphics; saving numbers
The cool thing of this whole advanced drawing method is that you could save the commands/paths as a file and redo it more easy than graphics.lineTo. If you do generative arts this could be a benefit. There is no official function for saving the data, but you could write it yourself since we are dealing with numbers. When opening a file you could theoretically push all commands/paths/fills inside the drawing-list and you could draw the same drawing. I haven’t test this, but maybe you could save the whole vector as ByteArray using ByteArray.writeObject(), compress it and then you have a nice way of saving ‘graphics’. Another benefit, you could delay ‘the draw’ and still collect data which could be drawed later. Very handy if you are doing heavy generative arts.
Conclusion?
It is not easy to draw lines using the the advanced method, since you are dealing with vectors with numbers, instead of lines. It is cool to have every graphic-thing as a separate classes and fills are nicely done and easily swap-able. Graphics data is now more flexible. Adobe could add more graphics classes. I hope they will add support for custom strokes (like Illustrator). At the other side, most things still fit in the good-old lineTo coding-style, which is very clean and straight-forward. Anyhow, it is nice to see a new way of saving graphics.
When you are drawing lots of lines, this advanced way should bring better performance since it is delaying the actual draw. I haven’t benchmarked how much exactly, but since you can mix graphics.drawPath with graphics.lineStyle, it feels graphics.drawGraphicsData is syntactic sugar which has the benefits noted I already mentioned.
I also wonder if it there would be a performance boost if you create your own lineTo function (which only pushes data to a list) based on the graphics.drawGraphicsData, with one drawNow() function.
Hope this will inspire you to share other or new possibilities.
var theEnd:GraphicsEndFill = new GraphicsEndFill(); // thanks for reading
Every one should write code that performs well. Do you use loops in your code? This is a simple trick everyone could apply to his loops.
How you write a loop
Mostly when people are writing loops, it looks like this:
for(var i:int = 0; i < list.length; i++) { var item:MyItem = list[i]; item.doSomething(); item.doAnotherThing(); }
Now this loops works, but there are some small things that could be improved. If you use lots of loops it should be needed to improve your loops, but I hope this is just nice to know anyway.
The optimized version
Take a look at the improved loop:
var item:MyItem; var total:uint = list.length; for(var i:uint; i < total; i++) { item = list[i] as MyItem; item.doSomething(); item.doAnotherThing(); }
What is improved in this loop? If you take a close look in both loops you will see I access the list-item once using list[i], and assign it to a variable called item. I don’t what it is, but for me it looks like most people who write javascript always use list[i] instead of creating a var of it, is that right? It is important to know you don’t need to create the var inside the loop, but create it once outside the loop, and (re-)use it while looping. I forget this most of the times, but it is a good practice to check if all the variables you are using inside a loop. Most of the times variables could be defined outside the loop, which could increase performance big time.
The second thing is to define a variable called total, which pre-calculates the length of the loop as a local variable. If you don’t define it, the FlashPlayer checks the length of the Array every time in the loop, now it is like a constant. Note, when you are removing items from the list, you should ajust the total-variable too, since the total does not equal the length of the list anymore ofcourse.
Another thing you probably noticed is that I used the ‘as’ keyword to give the FlashPlayer a direct hint of the type of variable. This another way of casting, and slightly faster than MyItem(list[i]).
Some other small things are to use uints for i and total in loops if you are using positive numbers. Another small thing is that you don’t have to define i = 0, only when you are using nested loops or re-using the i or j in the same function/scope.
Want a more freaky way to define the same optimized loop?
for(var i:uint, item:MyItem, total:uint = list.length; i < total; i++) { item = list[i] as MyItem; item.doSomething(); item.doAnotherThing(); }
I am really impressed by all molehill demos which already build. Molehill is the codename for GPU-accelerated rendering for flash. However I was kinda depressed when visiting the presentation Making A Molehill Out Of A Mountain on FITC Amsterdam. Accessing the GPU is really low-level. That is great news because it opens lots of possibilities, but it is depressing because it is low-level. Even if you are trying to be an pro/expert, you must be a freaking uber-talented geek to understand and be able to write shaders, assemblers, assembly (??) code which is needed for the real Molehill stuff. Respect for that. I am a geek, but that is way too difficult for me. I have tried to look to the content of AGALMiniAssembler from adobe, but I think thats not written by real humans.
Great frameworks
My point is; we have to wait for great frameworks. There are already 3D engines which are molehill-enabled (Alternativa3D, Away3D and some others). The GPU gives render powers. A brilliant idea of Tom Kcha is M2D. He came up with a 2D rendering system which uses the GPU inside a framework. I think this is a little jewel and is experiment-worthy, because I am using 2d content most of the time. The example codes are understandable. No freaking shaders, but normal AS3-like code. I think there will be more frameworks which will use the power of GPU rendering soon.
Experimenting with M2D – Molehill 2d
If you want to see my test with M2D, take a look at my two different versions of 2000 smilies. I have noticed they both use a lot of CPU but the M2D version renders about 3x smoother. I think this whole idea of 2d content on GPU is awesome! Adobe should implement this in a way to the ‘normal flashplayer’. Yes, there are limitations in the current workflow. You are mostly limited to bitmaps only, so you’ll need to know something about real sprites and blitting. However if you are using the example files, it will convert lots of different types of object (movieclips, shapes, animated-gif-like-sprites) to bitmap-objects for you. Imaging if games will implement this, they will have more rendering powers for free; that is huge and promising.
On twitter I said M2D did not support alpha, but in the latest version there is an alpha property too. I still wonder how much M2D could be optimized to get most out of 2d GPU rendering.
Getting started with Molehill
Now, you want to use Molehill to, right? Let’s do it! Setting up a molehill-enabled environment is relative easy if you are using FlashDevelop:
1. Download the activeX incubator FlashPlayer for windows. IE uses activeX, and FlashDevelop tabs use IE. 2. Download latest version of flashdevelop 3. Download nightly build of the Flex SDK (You’ll need 4.5.0.19786) 4. Download this flashplayer_inc_playerglobal_022711.swc. This includes classes for Molehill. Rename it to playerglobal.swc and place it at (flex_sdk location)\frameworks\libs\player\10.1 5. Create a new AS3 project in FlashDevelop, and target FlashPlayer version 10.1 in the project properties. Keep the properties open and choose to publish in a tab. Then navigate to tab Compiler options, and add -swf-version=13 to the Additional Compiler Options. In the custom path to Flex SDK (same tab) you’ll need to point to the Flex SDK folder you have just downloaded.
This should be enough to start building molehill projects.. and also to use M2D:
Getting started with M2D
Now, download the M2D.swc (or latest version from github) and add it to your lib-folder. Right-click > add to library and your basicly ready to start building 2d GPU-accelerated flashcontent!
The future is bright. Can’t wait to see more great+fast performing examples using this technology. Now.. start making cool shit already!
Jacob: Hi,
@Matt_W: Is there any posibility to see this code ? It would save my life ;) My mail: fenris85 at gmail.com . Thanks in advance !
Robert: It should be noted that Steven's method ONLY WORKS FOR INTEGERS! It's dangerous to use that method on :Number as those include floating point which a
Mark Knol: @Solenoid Cool you made a javascript performance test, nice to see this applies to actionscript ánd javascript.
Solenoid: Did a test for you: http://jsperf.com/absolute-value-speed/Steven Sacks's bitwise method wins hands down.PS: copy-paste from this website cont
